Fiber Optic Temperature Measurement Systems

Weidmann develops and manufactures in-house fiber optic temperature measurement systems for a wide range of applications. Our systems are complemented with a wide range of custom designed probes, sensors and accessories to ensure that we have the capability to address your needs.

Weidmann’s monitoring solutions can be calibrated in a range of -200 to 300 °C and connected to our monitoring software for data logging and visualization.

OEM SYSTEMS

FOTEMP OEM PLUS

Desktop Version

  • 1, 2, 4 Channel
  • Display
  • Analog Output
  • Relays
  • USB, RS232 or RS485 Interface
  • ASCII or MODBUS Protocol
  • 12V Power Supply

Datasheet

FOTEMP OEM

Cabinet Version

  • 1, 2, 4 Channel
  • Analog Output
  • Relays
  • USB, RS232 or RS485 Interface
  • ASCII or MODBUS Protocol
  • DINrail Option available
  • 12V Power Supply

Datasheet

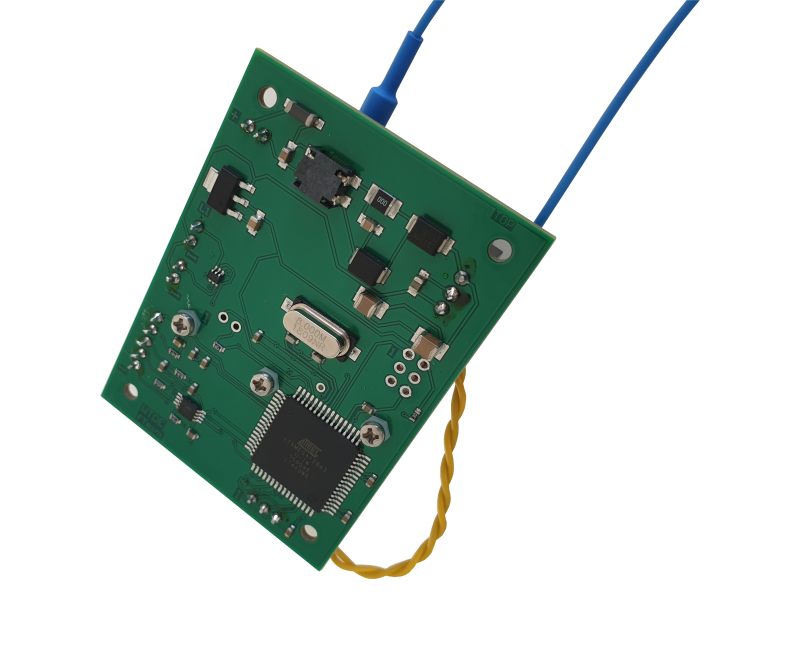

FOTEMP MINI

Plain Version

  • 1 or 2 Channel
  • UART-3.3V TTL Interface
  • ASCII or MODBUS Protocol
  • 7-12V Power Supply

Datasheet

MODULAR SYSTEMS

FTMSDesktop Version

Device Options

  • 42/84 TE
  • USB, RS232 or RS485 Interface
  • ASCII Protocol
  • 230V Power Supply

Module Options

  • 1, 2, 4 Channel
  • Display
  • Analog Output
  • Relays

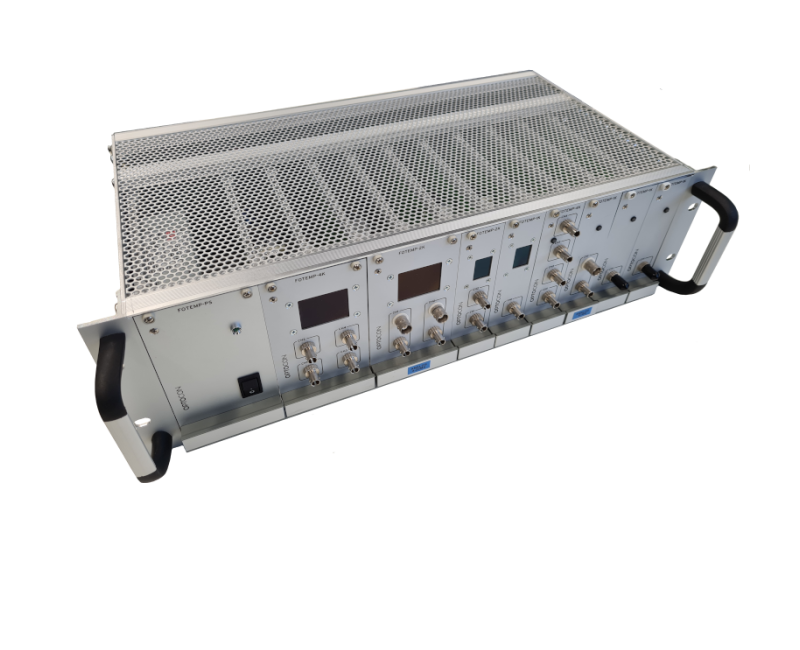

FTMSCabinet Version

ENERGY APPLICATIONS SYSTEMS

FOTEMP TRAFO 2

Datasheet

Device Options

  • 1 to 8 Channel
  • Expandable to 16 Channel
  • USB, RS485, Ethernet Interface
  • ASCII or MODBUS Protocol
  • Watchdog Relay
  • Sensor Fail Relay
  • 2 Temperature Alarm Relays
  • 8 Analog Outputs
  • SD-Card Logging

InsuLogix® T

Datasheet

Device Options

  • 1 to 16 Channels
  • 1 to 16 Analog Outputs
  • 1 to 16 Relays
  • Free programmable relay logic
  • Watchdog function
  • System and sensor fault relay
  • Data recording in internal memory
  • MODBUS, DNP3, IEC61850, IEC60870-104 Protocols
  • Can be supplied with Weidmann Certified SmartSpacer™
  • Comprehensive warranty plan
